Product

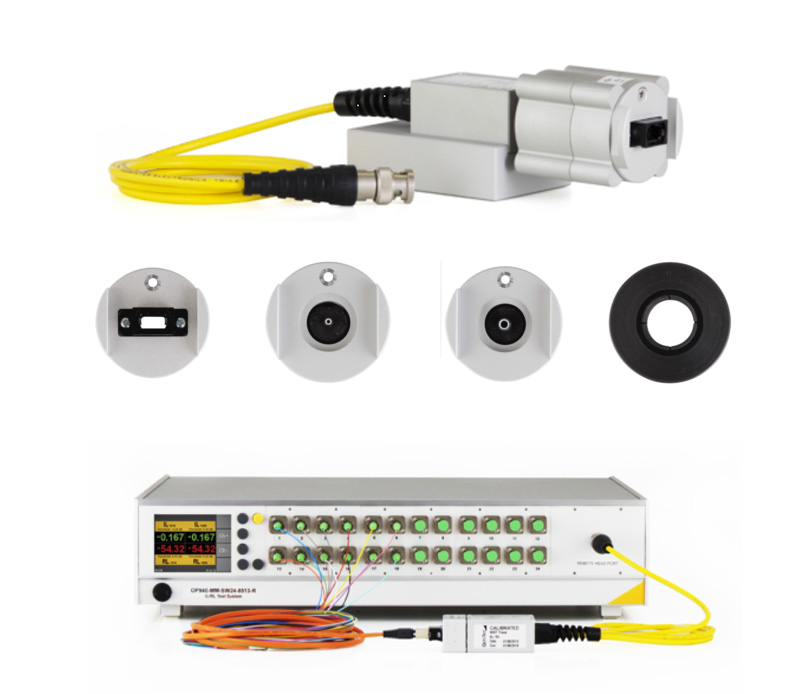

Remote Head Power Meters
  • Product introduction

    OptoTest’s Remote Head Power Meters (OPRH) create a highly adaptable fiber optic test environment when coupled with a supporting mainframe (eg OP940, OP815, etc) and maintain the same high level of accuracy and repeatability as panel mounted detectors.

     With its ergonomic design and flexible cable, OptoTest’s OPRH can be manipulated for use with hard-to-manage test cables. They are also ideal for measuring fibers terminated with simplex connectors such as LC, SC or FC as well as high density connectors such as MTP? or MXC?.


    Features

    0.02dB accuracy

    ? Measurement range

    InGaAs: 1mm, 3mm (0dBm to -72dBm) 5mm (0dBm to -65dBm) 10mm (0dBm to -55dBm)

    Silicon: 3mm (0dBm to -65dBm)

    High Power InGaAs: 2mm (+27dBm to -55dBm)

    Remote head is ideal for rigid cables that cannot easily be manipulated to use with a bench-top power meter

    Ergonomic in manufacturing environments

    Interface to all OP mainframes such as OP710, OP815, OP940 with the triaxial port

    Adapters for all common connector types including MTP?, PRIZM?, MXC?, 1.25mm, and 2.5mm

    Bare fiber adapters available for simplex or ribbon fiber
